The Johnson Electronic Self-Leveling Horizontal and Vertical Rotary Laser Level is a highly regarded tool among contractors, carpenters, and builders for its precision and versatility. This article explores the accuracy of this rotary laser level, its features, performance, and practical applications, providing a comprehensive understanding of why it is trusted in both indoor and outdoor projects.
The Johnson rotary laser level is designed to project highly accurate horizontal and vertical laser lines to assist in leveling, aligning, and grading tasks. It features electronic self-leveling capabilities, meaning it automatically adjusts to ensure the laser beam is perfectly level within a specific range. This tool is suitable for a variety of applications, including construction, landscaping, and interior installations.
- Electronic Self-Leveling: The unit self-levels within ±5 degrees. If the device is placed outside this range, it emits visual and audible alerts to notify the user to reposition it.
- Horizontal and Vertical Laser Projection: It can project both horizontal and vertical laser lines, allowing for versatile use in different leveling and alignment scenarios.
- Range and Detection: The interior range is up to 200 feet in diameter, while the exterior range extends up to 1,500 feet with the included laser detector.
- Accuracy: The device boasts an accuracy of ±1/8 inch per 100 feet, which translates to approximately ±1.0mm per 10 meters.

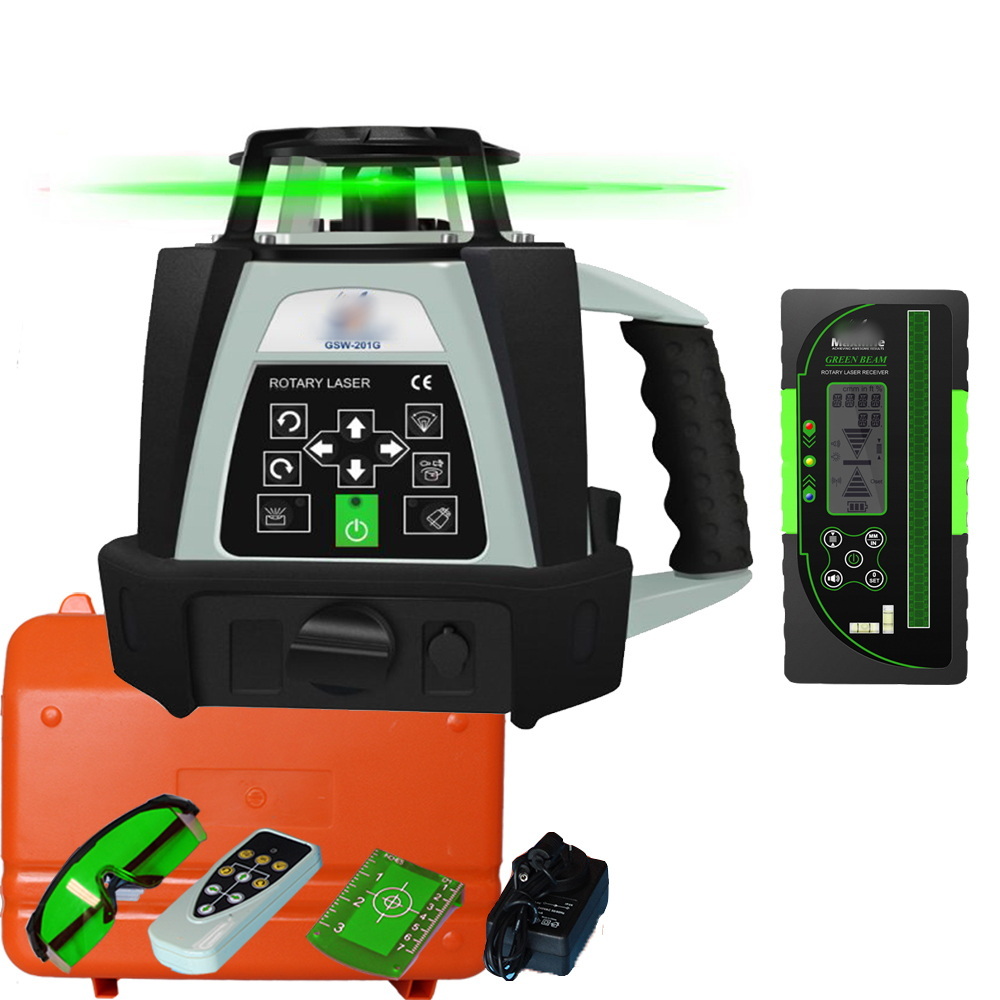

- Remote Control and Detector: For convenience, the kit includes a remote control and a laser detector, enabling one-person operation even in bright outdoor conditions.
- Durability: It features IP54 or higher protection rating, making it resistant to dust and rain, suitable for rugged job sites.
The accuracy of a laser level is critical for ensuring precise measurements and successful project outcomes. The Johnson Electronic Self-Leveling Horizontal and Vertical Rotary Laser Level offers an accuracy of ±1/8 inch at 100 feet. This means that over a distance of 100 feet, the laser beam will not deviate more than one-eighth of an inch from true level.
This level of precision is sufficient for most construction and carpentry tasks, including:
- Establishing level foundations
- Aligning walls and ceilings
- Installing cabinetry and fixtures
- Grading and landscaping
For comparison, some models like the Johnson 40-6535 offer even finer accuracy of ±1/16 inch per 100 feet, primarily for horizontal leveling, but the ±1/8 inch accuracy of the horizontal and vertical model remains excellent for versatile applications.
- Electronic Self-Leveling Mechanism: The unit uses an electronic compensator that continuously adjusts the laser's position to maintain level within the ±5-degree range.
- Visual and Audible Alerts: If the device is tilted beyond its leveling range, it alerts the user immediately, preventing inaccurate readings.
- Height of Instrument/Tilt Alarm: This feature ensures the instrument is correctly positioned, further enhancing accuracy.
- Slope Functionality: The unit can handle slopes up to ±5 degrees electronically, allowing for accurate measurements on inclined surfaces.
The Johnson Electronic Self-Leveling Rotary Laser Level is widely used in both indoor and outdoor environments due to its robust design and reliable performance.
- Perfect for tasks requiring precise vertical and horizontal alignment.
- Projects clear laser lines for installing drop ceilings, framing, and cabinetry.
- The laser is visible up to 200 feet indoors, depending on lighting conditions.

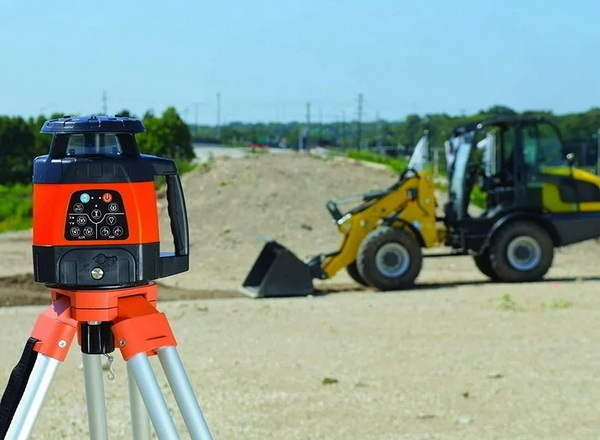

- The laser detector extends the range up to 1,500 feet, making it ideal for large-scale site grading and foundation leveling.
- The device's IP54 or higher rating protects it from dust and rain, ensuring durability on construction sites.
- The included remote control allows for easy adjustments without needing to move the device physically.
Users report that the Johnson rotary laser level is easy to set up and operate, with the self-leveling feature saving time and reducing errors. The audible and visual alarms provide confidence that the unit is functioning correctly. The rechargeable battery pack offers long operating times, typically around 24 hours, ensuring uninterrupted work.
| Feature | Johnson 40-6534 Horizontal & Vertical | Johnson 40-6535 Horizontal Only |
|---|---|---|
| Laser Orientation | Horizontal & Vertical | Horizontal |
| Accuracy | ±1/8" per 100 ft. | ±1/16" per 100 ft. |
| Range (Exterior) | Up to 1,500 ft. | Up to 2,000 ft. |
| Self-Leveling Range | ±5 degrees | ±5 degrees |
| Rotation Speeds | 200 & 500 rpm | 700 rpm |
| Power Supply | Rechargeable NiMH & Alkaline | Rechargeable NiMH & Alkaline |
| Weight | 4.4 lbs (2 kg) | 5.51 lbs (2.1 kg) |
| Slope Capability | ±5 degrees | ±8 degrees |
| IP Rating | IP54 | IP66 |
The 40-6534 model offers vertical and horizontal leveling with slightly less range and accuracy compared to the 40-6535, which is optimized for horizontal leveling with higher accuracy and longer range. However, the 40-6534's versatility in vertical applications makes it a preferred choice for many users.
To maintain accuracy, users should:
- Ensure the device is placed on a stable surface within the self-leveling range.
- Regularly check and replace batteries to avoid dim laser output.
- Use the remote control and detector properly to maximize range and precision.
- Follow manufacturer instructions for calibration and troubleshooting.
If the laser is out of its self-leveling range, it will stop rotating and alert the user, preventing inaccurate measurements. Calibration procedures are provided in the user manual to fine-tune the device if needed.
The Johnson Electronic Self-Leveling Rotary Laser Level includes several advanced features that enhance its usability and accuracy. Understanding these features can help users maximize the tool's potential.
The device is equipped with a rechargeable NiMH battery pack that provides up to 24 hours of continuous operation. For extended projects, users can switch to alkaline batteries as a backup. It is recommended to keep spare batteries on hand to avoid downtime.
The included remote control allows users to switch between horizontal and vertical laser modes, adjust rotation speeds, and turn the device on or off from a distance. This feature is particularly useful on large job sites where moving the device frequently is impractical.
For projects requiring angled measurements, the slope mode allows the laser to be set at an angle up to ±5 degrees. This is useful for tasks such as installing drainage systems or sloped ceilings. Users should ensure the device is securely mounted to maintain accuracy in slope mode.
While the device is rated IP54 for dust and water resistance, it is advisable to avoid using it in heavy rain or extremely dusty conditions to prolong its lifespan. Regular cleaning of the laser window and housing will help maintain optimal performance.
Periodic calibration checks are recommended to ensure continued accuracy. Users can perform simple tests by comparing the laser level readings against a known level surface. If discrepancies are found, professional calibration services may be necessary.
The Johnson Electronic Self-Leveling Horizontal and Vertical Rotary Laser Level is a reliable and accurate tool for a wide range of leveling and alignment tasks. With an accuracy of ±1/8 inch per 100 feet, electronic self-leveling, and robust features like audible and visual alarms, it ensures precision and ease of use on both indoor and outdoor projects. Its versatility in projecting horizontal and vertical laser lines, combined with a long operating range and durable design, makes it a valuable asset for professionals seeking dependable performance.
The device offers an accuracy of ±1/8 inch per 100 feet, suitable for most construction and carpentry applications.
Yes, it is designed for both indoor and outdoor use, with an exterior range of up to 1,500 feet when used with the included detector.
The laser level automatically adjusts within ±5 degrees to maintain a level laser line. If tilted beyond this range, it alerts the user with visual and audible signals.
It uses a rechargeable NiMH battery pack, a 6V battery adapter, or 4 "C" alkaline batteries (not included), providing flexibility and long battery life.
Yes, the kit includes a remote control for easy operation and a laser detector to extend the range and improve visibility in bright conditions.
