The Johnson Rotary Laser Kit is a versatile and essential tool for construction, leveling, and alignment tasks. One common question users often ask is whether a tripod is necessary for setting up and using this rotary laser effectively. This article explores the role of a tripod in the Johnson Rotary Laser Kit setup, its benefits, and alternative mounting options to help you get the most out of your laser level.

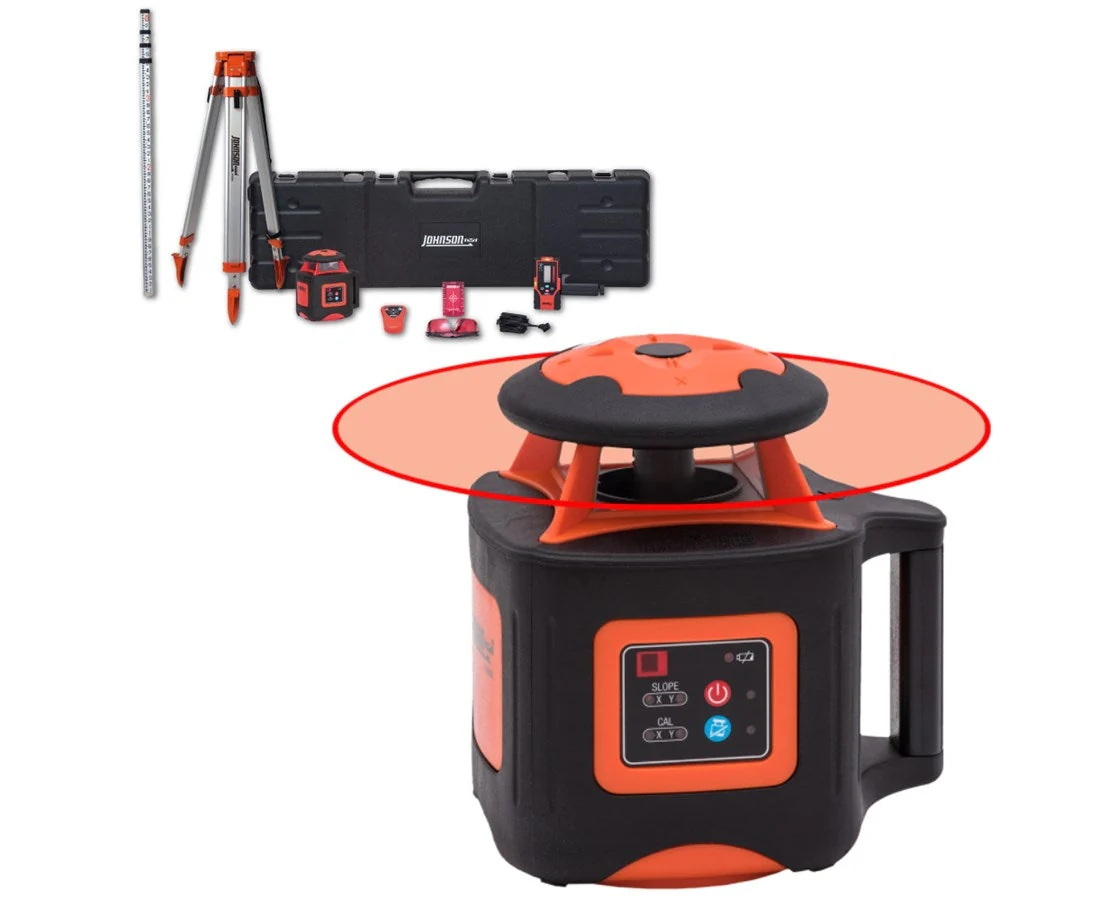

The Johnson Rotary Laser Kit includes a rotary laser level that projects a 360-degree laser line for precise horizontal or vertical leveling. It is widely used in construction projects such as foundation work, drywall installation, and grading. The kit typically comes with the laser unit, batteries, a mounting bracket, tinted glasses for laser visibility, and sometimes a tripod or mounting pole, depending on the specific model or purchase package.
A tripod serves as a stable platform to mount the rotary laser, allowing the laser to be positioned at the desired height and angle. It provides the following advantages:
- Stability: A tripod ensures the laser remains steady during operation, which is crucial for accurate measurements.
- Height Adjustment: Tripods allow easy vertical adjustment of the laser, enabling users to set the laser line at the exact height needed for the task.
- Self-Leveling Range Optimization: The Johnson Rotary Laser has a self-leveling mechanism that works effectively when the laser is within a certain tilt range. A tripod helps position the laser within this range.
- Hands-Free Operation: Mounting the laser on a tripod frees the user's hands to operate other tools or perform measurements.
According to Johnson Level & Tool's manuals and user guides, the rotary laser should ideally be mounted on a tripod or a stable platform using the 5/8”-11 screw thread at the bottom of the instrument. This mounting is recommended for both horizontal (self-leveling) and vertical operations to ensure accuracy and stability.
The manual advises placing the instrument on a tripod to avoid the laser being inclined beyond its self-leveling range, which would trigger an audible alarm and stop the laser from rotating until repositioned. This indicates the importance of a stable and adjustable mounting system like a tripod for optimal performance.
Users and professionals commonly use tripods with the Johnson Rotary Laser Kit for tasks such as:
- Setting foundation levels
- Hanging drywall or cabinets
- Laying tile floors
- Installing drop ceilings
- General site grading and leveling
The tripod's height adjustment and stable base make it easier to align the laser line with reference points, improving workflow efficiency and precision.
While a tripod is highly recommended, it is not the only way to mount the Johnson Rotary Laser. Alternatives include:
- Flat Surfaces or Platforms: The laser can be placed on a sturdy, level surface if a tripod is not available. However, this limits height adjustment and may reduce accuracy.
- Wall or Pole Mounts: Some kits include or allow mounting the laser on walls or poles using compatible brackets. This setup is useful for vertical laser lines or when working in confined spaces.
- Laser Mounting Poles with Tripods: Johnson offers an all-in-one laser mounting pole combined with a tripod that extends up to 11 feet, ideal for indoor projects requiring height flexibility.
However, these alternatives often lack the convenience and precision adjustment that a tripod provides.
Setting up the Johnson Rotary Laser with a tripod involves a few straightforward steps:
1. Attach the Laser to the Tripod: Use the 5/8”-11 screw thread on the tripod head to securely mount the laser unit.
2. Adjust Height: Use the tripod's crank or telescoping legs to raise or lower the laser to the desired height.
3. Level the Tripod: Ensure the tripod legs are stable and the base is level to avoid errors.
4. Power On and Self-Level: Turn on the laser, unlock the pendulum for horizontal operation, and allow the laser to self-level. If the laser is out of range, reposition the tripod.
5. Fine-Tune Positioning: Use the tripod's adjustment knobs to make any necessary fine adjustments for precise alignment.
- Improved Accuracy: Stability and adjustable height ensure the laser line is accurate and consistent.
- Ease of Use: Quick height adjustments and stable mounting simplify setup and reduce user fatigue.
- Versatility: Suitable for various applications, indoors and outdoors.
- Enhanced Safety: Keeps the laser steady, minimizing the risk of accidental movement or damage.
When selecting a tripod for your Johnson Rotary Laser Kit, consider the material and design. Common tripod materials include aluminum, fiberglass, and carbon fiber. Aluminum tripods are durable and affordable but can be heavier. Fiberglass tripods offer better vibration dampening and are more resistant to temperature changes, making them ideal for outdoor use. Carbon fiber tripods are lightweight and strong but tend to be more expensive.
Tripods also come with different leg locking mechanisms such as flip locks or twist locks. Flip locks allow quick adjustments, while twist locks provide a more secure hold. Choosing the right tripod depends on your specific needs, including portability, stability, and budget.
To ensure longevity and optimal performance of your Johnson Rotary Laser Kit and tripod, regular maintenance is essential. Keep the tripod legs clean and free from dirt and debris to prevent damage to the locking mechanisms. Lubricate moving parts occasionally with a silicone-based lubricant to maintain smooth operation.
For the laser unit, avoid exposing it to extreme temperatures or moisture. Store the kit in its protective case when not in use. Regularly check the laser calibration and battery condition to ensure accurate readings during your projects.
Safety is paramount when working with laser equipment. Always wear the provided tinted glasses to protect your eyes from direct laser exposure. Never look directly into the laser beam or point it at others.
Ensure the tripod is set up on a stable surface to prevent tipping over, which could damage the laser or cause injury. When working on uneven terrain, adjust the tripod legs carefully to maintain stability.
By following these guidelines, you can safely and effectively use your Johnson Rotary Laser Kit for a wide range of applications.
A tripod is highly recommended for setting up the Johnson Rotary Laser Kit to maximize accuracy, stability, and ease of use. While the laser can be placed on flat surfaces or mounted in other ways, a tripod provides the best platform for precise leveling and alignment tasks. Investing in a quality tripod or a compatible mounting pole with tripod functionality will enhance your experience and results when using the Johnson Rotary Laser.
No special tripod is required, but it should have a 5/8”-11 screw thread to fit the laser unit securely. Many standard laser tripods are compatible.
Yes, but it is not recommended. Using the laser on unstable or uneven surfaces can reduce accuracy and may cause the laser to stop if it exceeds its self-leveling range.
The height depends on the tripod used. Johnson offers mounting poles with tripods that extend up to 11 feet, suitable for most indoor and outdoor applications.
If the laser is tilted beyond its self-leveling range, it will emit an audible alarm and stop rotating until repositioned within the acceptable range.
Locking the pendulum is necessary only for vertical operation or transportation. For horizontal self-leveling use, the pendulum should be unlocked.
