A rotary laser level detector is an essential tool in construction and surveying, providing precise leveling over long distances. Calibration of these devices is crucial for ensuring accuracy, especially after transportation or if they have been dropped. This article will guide you through the calibration process, discuss the importance of accuracy, and answer frequently asked questions.
A rotary laser level is a tool that projects a rotating laser beam around a job site, creating a level reference line. This tool is invaluable for tasks requiring precise measurements, such as grading, framing, and aligning structures.
The rotary laser emits a beam that rotates 360 degrees. When paired with a detector, the beam can be detected even at significant distances, allowing for accurate readings in various conditions. The laser level can be set to horizontal or vertical modes, making it versatile for different applications.
Components of a Rotary Laser Level:
- Laser Diode: The source of the laser beam.
- Motor: Rotates the laser beam around the horizontal plane.
- Detector: Receives the laser signal and provides feedback on height.
- Tripod: Stabilizes the device for accurate readings.
Calibration ensures that the measurements provided by the rotary laser level are accurate. Factors such as transportation, environmental changes, or physical impacts can cause misalignments. Regular calibration helps maintain the integrity of your measurements and reduces costly errors on the job site.
Inaccurate measurements can lead to:
- Structural Issues: Misalignment in construction can compromise building integrity.
- Increased Costs: Mistakes often require rework, wasting time and resources.
- Safety Hazards: Incorrect leveling can create unsafe working conditions.
- Inconsistent readings when measuring the same point.
- The detector fails to pick up the laser beam at expected distances.
- Visible damage to the device or its components.
1. Set Up Your Equipment
- Place the tripod at least 100 feet from the wall or pole to avoid interference.
- Use a carpenter's level to ensure the tripod is level and secure the rotary laser on top.
2. Position the Laser
- Direct the laser towards your target (wall or pole) and ensure it has a clear line of sight.
3. Turn on the Device
- Activate the laser and take the detector to your target location.
- Remove any clamps and allow the detector to signal where it detects the beam.
4. Mark Your First Point
- Mark this location with a +X notation using the marking notch on your detector.
5. Rotate 180 Degrees
- Rotate the laser 180 degrees and repeat the process.
- Mark this second point with a –X notation.
6. Determine True Level
- The true level is halfway between +X and –X. If these points differ by more than ±1/8 inch (or ±1/16 inch depending on your device's specifications), calibration adjustments are necessary.
7. Check at 90 Degrees
- Move to another side at 90 degrees and mark this point with +Y.
- Compare this distance to your true mark to ensure it falls within specified accuracy limits.
8. Adjust as Necessary
- If there are discrepancies in your readings, use the adjuster knob at the end of the level vial to recalibrate until all points align correctly.
- Use Quality Equipment: Ensure that both your rotary laser level and detector are of high quality for best results.
- Perform Regular Maintenance: Keep your equipment clean and free from debris that could affect performance.
- Store Properly: When not in use, store your rotary laser level in its case to protect it from damage.
The primary benefit of using a rotary laser level detector is increased accuracy compared to traditional leveling methods. It allows for precise measurements over long distances without relying solely on manual calculations.
Rotary lasers can project beams over significant distances (up to 1,600 feet or more), making them suitable for large projects such as grading land or constructing buildings.
These tools can be used in various applications:
- Construction: For framing walls, laying foundations, and installing ceilings.
- Landscaping: To ensure proper grading for drainage and aesthetics.
- Interior Design: For hanging cabinets or artwork at consistent heights.

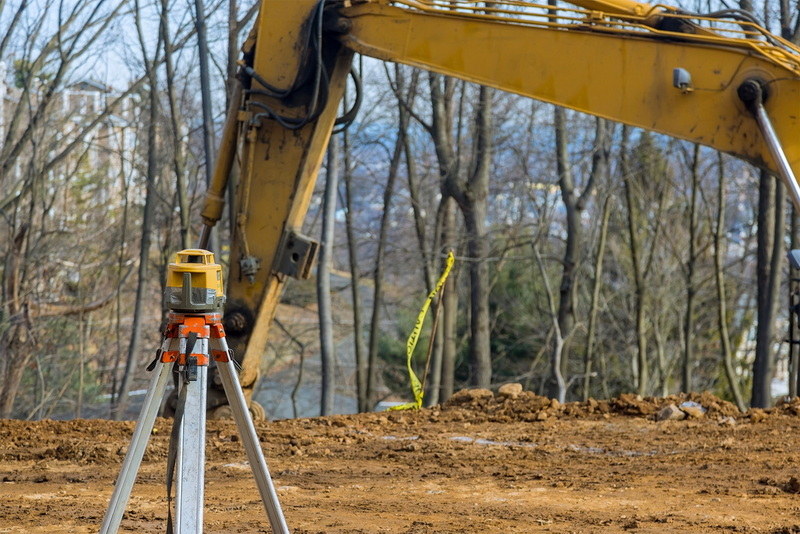

1. Grading Projects
- Ensuring that land is leveled correctly before construction begins is critical for stability.
2. Framing Walls
- Accurate wall placement requires precise leveling; rotary lasers simplify this task significantly.
3. Installing Ceilings
- When installing drop ceilings or lighting fixtures, maintaining consistent height throughout is essential.
4. Landscaping
- For projects involving slopes or drainage systems, rotary lasers help achieve proper grading.
5. Surveying Land
- Surveyors use rotary lasers to establish benchmarks and reference points across large areas efficiently.
Many modern rotary laser levels come equipped with self-leveling features that automatically adjust to provide accurate readings without manual intervention. This feature significantly reduces setup time and ensures that users get reliable results quickly.
- Electronic Self-Leveling: These devices use internal sensors to detect tilt and adjust accordingly within seconds.
- Manual Leveling: Users must adjust these levels manually using bubble vials; they require more skill but are often less expensive than electronic models.
Some advanced rotary laser levels offer remote control capabilities that allow users to operate them from a distance. This feature is particularly useful on large job sites where accessing the device may be challenging once set up.
To ensure your rotary laser level detector remains functional for years:
1. Regular Cleaning
- Wipe down lenses and surfaces with a soft cloth to prevent dust accumulation that could obstruct beams.
2. Battery Maintenance
- Regularly check battery levels; replace them promptly to avoid interruptions during use.
3. Calibration Check After Transport
- Always recheck calibration after moving your equipment to different locations or environments.
4. Protective Cases
- Invest in high-quality protective cases when transporting your equipment; this will minimize damage risks during transit.
5. Software Updates (if applicable)
- For electronic models with software components, check for updates from manufacturers that may improve functionality or performance.
Many users report significant improvements in efficiency when incorporating rotary laser levels into their workflows:
- Contractors have noted reduced project timelines due to faster setup times compared to traditional methods.
- Surveyors appreciate how easy it is to establish benchmarks quickly across large areas without needing multiple assistants.
In one case study involving a large commercial building project:
- The contractor utilized a rotary laser level detector throughout all phases of construction.
- They reported an overall reduction in labor costs by approximately 15% due to fewer errors requiring rework.
- The project was completed two weeks ahead of schedule thanks to improved accuracy during initial setups.
Calibrating a rotary laser level detector is essential for achieving precise measurements in construction and surveying tasks. By following these outlined steps regularly, users can ensure their equipment remains accurate and reliable. Proper calibration not only enhances productivity but also minimizes costly mistakes on job sites. Investing time in calibration will pay off in terms of improved accuracy and efficiency in your projects.
Calibration should be performed whenever you transport your device or if it has been subjected to physical stress (like being dropped).
You will need a tripod, a carpenter's level, and your rotary laser level with its detector.
Yes, while having an assistant can help, you can calibrate it by following the steps provided without additional help.
If discrepancies persist after calibration, consider checking for damage or consult with customer support for further assistance.
Yes, there are manual leveling, self-leveling, and electronic self-leveling models available, each with varying degrees of accuracy and ease of use.
