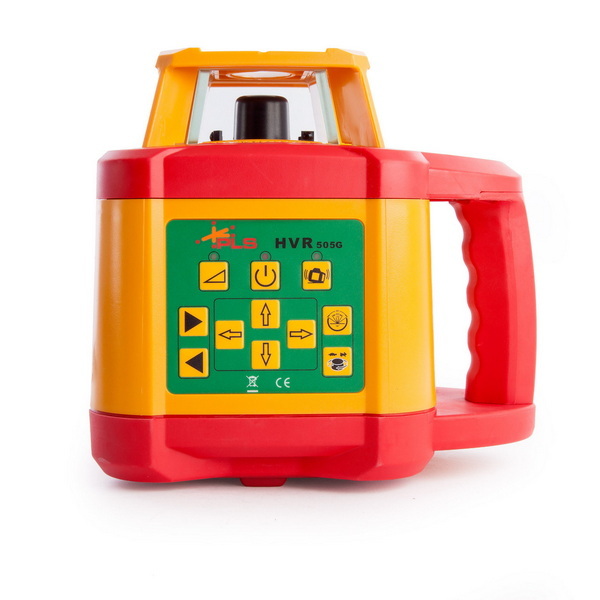

The PLS (Pacific Laser Systems) rotary laser levels are engineered to deliver precise leveling and alignment for a wide array of construction and layout tasks. This article delves into the versatility of PLS rotary laser levels, with a particular emphasis on their effectiveness in both indoor and outdoor settings. We will explore their features, benefits, and specific models such as the PLS H2, HV2R, and HV2G, alongside real-world usage scenarios, ensuring a comprehensive understanding of their capabilities.
PLS rotary laser levels have earned a solid reputation for their accuracy, robustness, and user-friendliness. They serve as indispensable tools for a diverse range of professionals, including contractors, electricians, plumbers, and landscapers. The PLS H2 is specifically designed for horizontal leveling, while the HV2R and HV2G models offer the added functionality of projecting both horizontal and vertical laser planes, thereby expanding their versatility across various applications.
- Accuracy: One of the hallmark features of PLS rotary laser levels is their exceptional accuracy. All models boast an accuracy of ≤ 2.2 mm at 30 m (≤ 3/32 in at 100 ft), ensuring precise measurements for critical tasks. This level of accuracy is vital for projects where even slight deviations can have significant consequences.
- Range: The working range of these laser levels is impressive, extending up to 30 m (100 ft) without the need for a detector. However, when paired with an XLD laser detector, the range dramatically increases to an impressive 300 m (1000 ft). This extended range makes PLS rotary laser levels suitable for large-scale outdoor projects, providing versatility in various environments.
- Durability: In construction and outdoor environments, equipment must withstand harsh conditions. PLS rotary laser levels are designed with durability in mind. They are rated IP67, meaning they are completely dustproof and can withstand immersion in water up to 1 meter for 30 minutes. Additionally, these lasers are drop-tested from 1 meter, further attesting to their rugged construction and reliability.
- Temperature Resistance: The ability to operate effectively in a wide range of temperatures is crucial for tools used in outdoor settings. PLS rotary laser levels excel in this aspect, functioning effectively in temperatures ranging from -20 °C to 50 °C (-4 °F to 122 °F). This temperature resistance ensures consistent performance, regardless of the environmental conditions.
| Model | Laser Type | Accuracy | Working Range | Auto-Leveling Range | IP Rating | Additional Features |
|---|---|---|---|---|---|---|
| PLS H2 | Horizontal | ≤ 2.2 mm @ 30 m | ≤ 30 m (100 ft) | ± 5-degrees | IP67 | Designed for basic horizontal leveling tasks |
| HV2R | Horizontal/Vertical | ≤ 2.2 mm @ 30 m | ≤ 30 m (100 ft) | ± 5-degrees | IP67 | Includes both horizontal and vertical laser planes |
| HV2G | Horizontal/Vertical | ≤ 2.2 mm @ 30 m | ≤ 30 m (100 ft) | ± 5-degrees | IP67 | Green beam for enhanced visibility |
PLS rotary laser levels are invaluable tools for indoor environments where precision is paramount. Their accuracy and ease of use make them suitable for a variety of interior projects, ensuring professional-quality results.
- Drywall Installation: Proper alignment is crucial when installing drywall to ensure smooth, even walls. PLS rotary laser levels provide a precise reference line, allowing installers to align drywall panels accurately, reducing the risk of errors and rework.
- Suspended Ceiling Installation: Creating a level plane is essential for suspended ceilings to ensure a uniform appearance and prevent sagging. PLS rotary laser levels project a consistent horizontal line, facilitating the accurate installation of ceiling grids and tiles, resulting in a professional-looking finish.
- Flooring Projects: Achieving a level subfloor is vital before installing any type of flooring material. PLS rotary laser levels help ensure that the subfloor is perfectly level, providing a stable base for the flooring and preventing issues such as uneven surfaces or squeaking floors.
- Ease of Use: PLS rotary laser levels are designed with simplicity in mind, featuring intuitive controls and one-button operation. Even users with limited experience can quickly master the operation of these tools, minimizing the learning curve and increasing productivity.
- Compact Design: Their lightweight and compact design makes PLS rotary laser levels easy to transport between job sites, reducing strain and increasing efficiency. The compact size also allows for easy storage when the tool is not in use.
- Accuracy and Precision: The high level of accuracy offered by PLS rotary laser levels ensures that all indoor projects are completed with precision, reducing the risk of errors and ensuring a professional finish.
Outdoor environments present unique challenges due to factors such as sunlight, wind, and uneven terrain. However, PLS rotary laser levels are engineered to overcome these obstacles and deliver reliable performance in outdoor settings.
- Site Preparation: Before any construction project begins, it is essential to prepare the site by leveling the ground. PLS rotary laser levels provide a precise reference plane for grading and excavation, ensuring that the site is properly prepared for construction.
- Concrete Pouring: Setting forms accurately is critical for concrete pouring to ensure level foundations and slabs. PLS rotary laser levels provide a reliable reference line for setting forms, ensuring that the concrete is poured to the correct level and creating a stable base for structures.
- Landscaping Projects: Establishing proper grades is essential for drainage and planting beds in landscaping projects. PLS rotary laser levels help landscapers create accurate slopes and levels, ensuring proper water runoff and creating aesthetically pleasing landscapes.
- High Visibility: The HV2G model features a green laser beam that is significantly more visible in bright sunlight compared to red lasers. This enhanced visibility ensures that the laser line is easily seen, even in direct sunlight, increasing accuracy and efficiency.
- Durable Construction: PLS rotary laser levels are built to withstand the rigors of outdoor use. Their rugged construction and IP67 rating ensure that they can withstand harsh weather conditions, dust, and water exposure, providing reliable performance in challenging environments.
- Extended Range: When paired with a laser detector, PLS rotary laser levels offer an extended range of up to 300 m (1000 ft), making them suitable for large-scale outdoor projects. This extended range allows users to work efficiently over long distances, increasing productivity and reducing the need for multiple setups.
1. Calibration: Before each use, calibrate your PLS rotary laser level to ensure accuracy. Calibration involves checking the laser's alignment and adjusting it if necessary to ensure that it is projecting a level plane.
2. Use with Detectors: For outdoor use, especially in bright conditions, utilize a laser detector to enhance visibility and extend the working range. Laser detectors amplify the laser signal, making it easier to see in bright sunlight and allowing you to work over longer distances.
3. Secure Setup: Ensure the tripod is stable, especially on uneven ground, to prevent misalignment. A stable tripod is essential for maintaining the accuracy of the laser level. Make sure the legs are securely locked and the tripod is positioned on a solid surface.
4. Regular Maintenance: Keep the lens clean and check for any damages after each use. Regular maintenance will help prolong the life of your PLS rotary laser level and ensure that it continues to perform accurately.
The PLS HV2R and HV2G models are versatile tools that offer both horizontal and vertical leveling capabilities, making them suitable for a wide range of applications. While both models share similar features, the primary difference lies in the color of the laser beam. The HV2R utilizes a red laser, while the HV2G features a green laser. The green laser beam is generally more visible in bright light conditions, making the HV2G a better choice for outdoor applications where visibility is critical.
- Layout and Alignment: Both models can be used for layout and alignment tasks, such as setting out building lines, marking reference points, and aligning structures. The ability to project both horizontal and vertical laser planes makes these models particularly useful for complex layout tasks.
- Leveling and Grading: The HV2R and HV2G are ideal for leveling and grading applications, such as leveling floors, grading sites, and creating slopes for drainage. The precise leveling capabilities of these models ensure accurate results, reducing the risk of errors and rework.
- Plumbing and Electrical Work: These models can be used for plumbing and electrical work, such as aligning pipes, installing conduits, and ensuring that fixtures are level. The ability to project both horizontal and vertical laser planes makes these models versatile tools for a variety of plumbing and electrical tasks.
PLS offers a range of accessories designed to enhance the efficiency and versatility of their rotary laser levels. These accessories include laser detectors, tripods, grade rods, and remote controls. Using these accessories can significantly improve the accuracy and speed of your work, especially in challenging environments.
Laser detectors are essential for outdoor use, particularly in bright sunlight. They amplify the laser signal, making it easier to see the laser line over long distances. PLS offers a variety of laser detectors compatible with their rotary laser levels, allowing you to choose the detector that best suits your needs.
A stable tripod is essential for maintaining the accuracy of your laser level. PLS offers a range of tripods designed to provide a stable base for their rotary laser levels. These tripods are typically made of durable materials and feature adjustable legs, allowing you to set up the laser level on uneven terrain.
Grade rods are used to measure the height difference between two points. They are commonly used in leveling and grading applications. PLS offers a variety of grade rods compatible with their rotary laser levels, allowing you to accurately measure the height difference between points.
Remote controls allow you to operate the laser level from a distance. This can be particularly useful when working alone or in hard-to-reach areas. PLS offers remote controls compatible with their rotary laser levels, allowing you to adjust the laser settings without having to physically touch the laser level.
In summary, PLS rotary laser levels are versatile and reliable tools suitable for a wide range of indoor and outdoor applications. Their accuracy, durability, and ease of use make them invaluable for professionals in various fields, including construction, landscaping, plumbing, and electrical work. Whether you're setting up drywall, preparing a site for construction, or aligning pipes, the PLS rotary laser levels provide consistent and dependable performance that meets the demands of any project. The models such as PLS H2, HV2R, and HV2G offer specific advantages tailored to different applications, ensuring there's a PLS laser level for every job.
- The maximum range is up to 300 m (1000 ft) when used with an XLD laser detector, providing extensive coverage for large projects.
- Yes, the PLS H2 model can be used outdoors for basic horizontal leveling; however, consider the HV2G for enhanced visibility in sunlight.
- Green lasers are generally more visible in bright light conditions compared to red lasers, making them ideal for outdoor use and large indoor spaces.
- Regularly clean the lens with a soft cloth, check for any damages after each use, and store the laser level in a protective case to prevent dust and impact damage.
- Yes, they typically come with a three-year warranty covering defects in materials and workmanship, ensuring peace of mind for your investment. Always check the specific warranty terms with the retailer or manufacturer.
